Evil Twin attack defense framework

Individual research project. MAOU Gymnasium №16, Tyumen, Russia (2026)
Author: Saveliy Golubev | Supervisor: Yulia Myshko, Informatics Teacher

Awarded 3rd Place at the Lomonosov Readings Research Conference (МАОУ Гимназия №16, Тюмень, 2026)

Overview

This project presents a full research cycle on the Evil Twin attack, one of the most prevalent and underestimated threats in public Wi-Fi environments. The work combines rigorous theoretical analysis with hands-on simulation in an isolated laboratory, culminating in a practical set of defensive guidelines for everyday users.

Core hypothesis: A live, controlled demonstration of an Evil Twin attack produces more effective and internalized security guidelines than purely theoretical analysis.

Problem Statement

Public Wi-Fi networks (cafes, airports, universities) have become standard infrastructure. Their primary advantage, open accessibility, is also their greatest security liability. Evil Twin attacks exploit this by:

• Mimicking legitimate access points with identical SSIDs
• Forcing victim devices to reconnect via deauthentication packets
• Capturing credentials through a phishing captive portal
• Performing Man-in-the-Middle interception of all unencrypted traffic

The attack requires no advanced skills. Off-the-shelf tools automate every stage within minutes. This accessibility is precisely what makes it dangerous and worthy of public education.

Research Scope

Technical Stack

Attack Simulation Environment

• Host OS: Windows 10/11
• Virtualization: Oracle VM VirtualBox 7.0 (Internal Network mode, fully air-gapped)
• Attack OS: Kali Linux 2024.1 Rolling Release
• Primary Framework: airgeddon v11.22
• Supporting Tools: hostapd, dnsmasq, lighttpd, iptables, aireplay-ng, airodump-ng

Network Isolation Architecture

• Physical host: Windows
• VirtualBox Internal Network: no external connectivity
  • Kali Linux VM (attacker)
  • Android device (victim, connected manually)

Attack Chain

1. Reconnaissance. airodump-ng with the adapter in monitor mode.
2. Evil Twin. hostapd starts a fake access point with a cloned SSID.
3. Deauthentication. aireplay-ng forces the victim to disconnect from the real network.
4. Interception. dnsmasq and iptables route all of the victim's traffic through the attacker.
5. Phishing portal. lighttpd serves a captive portal that captures the credentials.

Steps 3 and 5 are the active attack: the moment the victim is kicked off and the moment the password is taken.

Experiment Results

The full attack chain was reproduced in ~15 minutes from VM launch to credential capture:

1. Reconnaissance: wireless interface placed in monitor mode, target SSID identified
2. Evil Twin Deployment: rogue AP created with matching SSID Free_Public_Lab, encryption disabled
3. Deauthentication: aireplay-ng deauth packets forced the victim device to disconnect from the legitimate AP
4. Captive Portal Setup: dnsmasq, lighttpd and iptables redirected all HTTP traffic to a phishing login page
5. Credential Capture: test credentials (test_user / Sup3rSecret!) entered by the victim, immediately displayed in the attacker terminal

Extended scenario: Attack was also validated against a WPA2 network with a shared password (PublicPassword123), confirming that knowing the network password offers no protection against Evil Twin.

All experiments were conducted exclusively on researcher-owned equipment in a physically and logically isolated environment, using test credentials only. No real user data was intercepted at any point.

Key Findings

• Technical barrier is low: the entire attack runs from a menu-driven script with basic CLI knowledge
• HTTPS is insufficient: Phishing portals can serve valid certificates (e.g., Let's Encrypt), making HTTPS checks alone unreliable
• Auto-connect is the primary attack enabler: Devices automatically joining strongest-signal known SSIDs are the critical vulnerability
• Social engineering dominates: the attack doesn't break cryptography, it bypasses it by exploiting user trust

Practical Defense Guidelines (6-Rule Framework)

Rule 1. Use a VPN (most critical)

A trusted VPN encrypts all traffic before it leaves the device. Even on a compromised Evil Twin network, the attacker sees only an encrypted stream between the device and the VPN server.

• Choose providers with a no-logs policy and modern protocols (WireGuard or OpenVPN)
• Activate VPN before connecting to any public network

Rule 2. Control Wi-Fi connections manually

• Disable auto-connect to open networks on all devices
• Delete saved networks from hotels, cafes, transit hubs after use
• Verify the exact SSID with staff before connecting, and watch for near-identical names (e.g., Starbucks_Free vs Google Starbucks)

Rule 3. Limit activity on public networks

• Without an active VPN: avoid any authentication (email, banking, social media)
• For sensitive operations: use mobile data (4G/5G), since cellular networks provide built-in encryption between device and tower

Rule 4. Harden your accounts

• Enable Two-Factor Authentication (2FA) on all critical accounts, so even captured credentials become useless without the OTP
• Use a password manager to maintain unique passwords per service, preventing credential stuffing

Rule 5. Apply technical verification

• Check for duplicate SSIDs using apps like Wi-Fi Analyzer; two networks with the same name but different signal strengths can indicate a twin
• Compare BSSID (MAC address) of the connected AP against the known legitimate one
• Look for DNS leak protection in your VPN; a phishing page appearing despite an active VPN is a direct attack indicator

Rule 6. Keep software updated

• OS and browser updates patch vulnerabilities that can be exploited even within an Evil Twin session (e.g., browser-based code injection)

Detection Methods (Advanced Users)

Comparative Analysis: Protection Methods

Lab screenshots

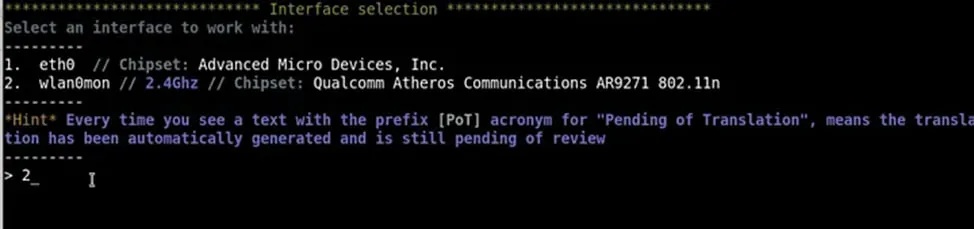

Wireless adapter switched to monitor mode

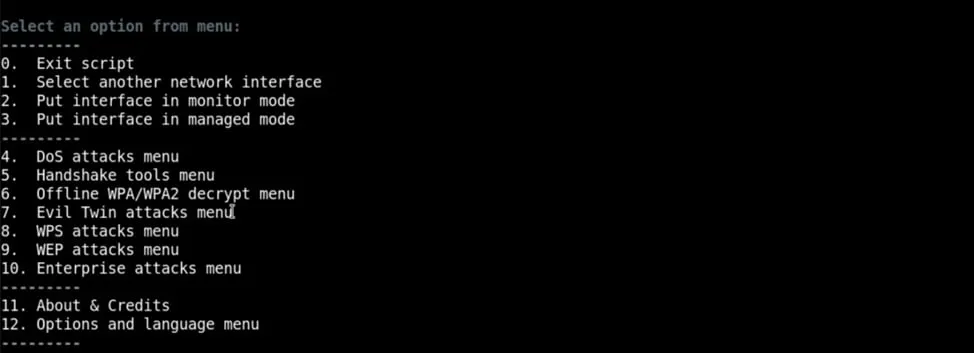

airgeddon Evil Twin attack menu

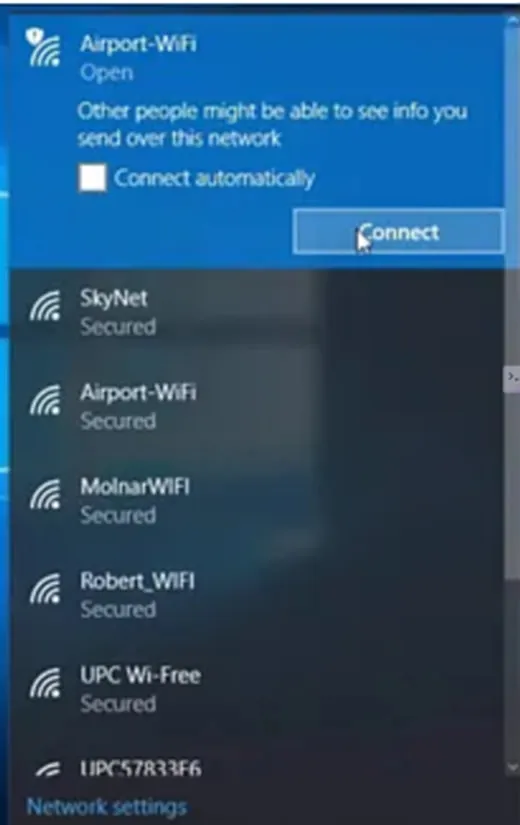

Fake access point running inside the isolated lab

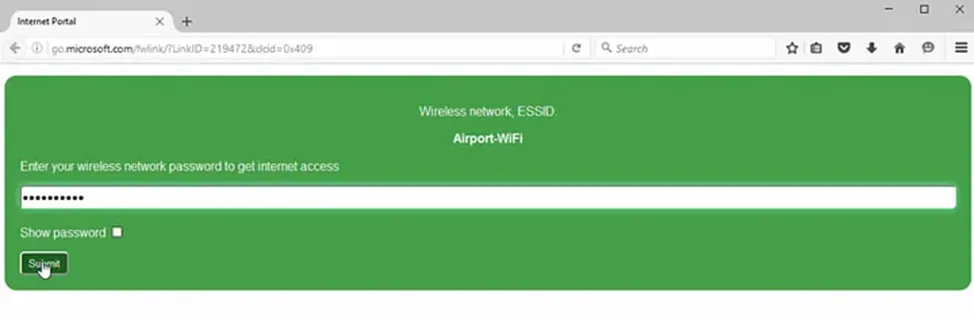

Phishing captive portal shown to the test client

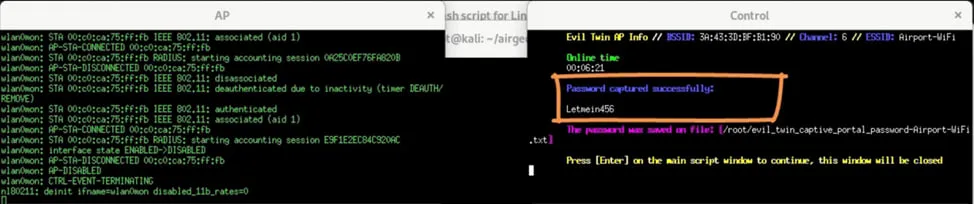

Synthetic test credentials captured by the portal

Ethical & Legal Statement

All research was conducted in strict compliance with ethical hacking principles:

1. Explicit ownership: all equipment used belongs to the researcher
2. Complete isolation: VirtualBox Internal Network mode, zero interaction with external networks
3. Educational purpose only: no real user data captured, stored, or analyzed
4. Test data exclusively: all demonstrated credentials are synthetic

Unauthorized deployment of Evil Twin attacks is a criminal offense under Russian Federation Criminal Code Articles 272 and 273. This project is designed to educate and defend, not to enable attacks.

References

1. airgeddon framework: https://github.com/v1s1t0r1sh3r3/airgeddon
2. Kali Linux Documentation: https://www.kali.org/docs/
3. Roskachestvo, Evil Twin glossary: https://rskrf.ru/glossary/zloy-dvoynik-evil-twin/
4. IEEE 802.11 Standard (Wireless LAN)
5. NIST SP 800-153, Guidelines for Securing Wireless Local Area Networks
